Aalekh

Architecture Visualization & Linting for Gradle Multi-Module Projects

Aalekh is a Gradle plugin that extracts, visualizes, and enforces architectural rules across any Gradle multi-module project - Kotlin Multiplatform, Android, JVM, or any Gradle project. It gives teams three capabilities that no existing tool provides together: an interactive module graph, a Kotlin DSL for architecture rule enforcement, and historical metrics tracking - in a single plugin, with zero external dependencies beyond the browser.

Sample Reports

• Now in Android App
  • View locally
  • View on GitHub Pages
• Now in Android App - with cyclic dependency
  • View locally
  • View on GitHub Pages
• Tallyo (KMP)
  • View locally
  • View on GitHub Pages

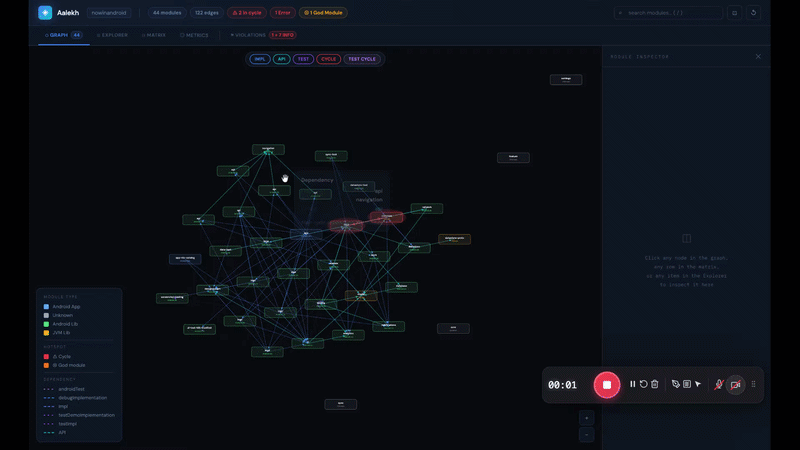

Sample Report Demo

Why Aalekh?

Tool	Visualizes	Enforces rules	Tracks metrics	KMP-aware
Aalekh	✓	✓	✓	✓

Table of Contents

- [Quick Start](#quick-start) - [Installation](#installation) - [Settings plugin (recommended)](#settings-plugin-recommended) - [Project plugin (deprecated)](#project-plugin-deprecated) - [Gradle Tasks](#gradle-tasks) - [aalekhReport](#aalekhreport) - [aalekhCheck](#aalekhcheck) - [aalekhExtract](#aalekhextract) - [The Report](#the-report) - [Seven tabs](#seven-tabs) - [Header toolbar](#header-toolbar) - [URL permalink](#url-permalink) - [Module Inspector sidebar](#module-inspector-sidebar) - [Cycle detection](#cycle-detection) - [Configuration](#configuration) - [Architecture Rules](#architecture-rules) - [Built-in rules](#built-in-rules) - [Violation severity levels](#violation-severity-levels) - [Layer enforcement](#layer-enforcement) - [Feature isolation](#feature-isolation) - [Team ownership](#team-ownership) - [Gradual adoption](#gradual-adoption) - [Transitive dependency limit](#transitive-dependency-limit) - [Cycle regression prevention](#cycle-regression-prevention) - [SARIF output for GitHub PR annotations](#sarif-output-for-github-pr-annotations) - [Custom rules](#custom-rules) - [Metrics & Output](#metrics--output) - [Graph metrics](#graph-metrics) - [Output files reference](#output-files-reference) - [Metrics CSV export](#metrics-csv-export) - [Trend history](#trend-history) - [Captured Configurations](#captured-configurations) - [Module Types](#module-types) - [Configuration Cache](#configuration-cache) - [CI Setup](#ci-setup) - [Compatibility](#compatibility) - [Contributing](#contributing) - [License](#license)

Quick Start

1. Add to settings.gradle.kts:

plugins {
    id("io.github.shivathapaa.aalekh") version "0.4.0"
}

2. Run:

./gradlew aalekhReport

An interactive HTML report opens automatically in your default browser. No configuration required.

Installation

Settings plugin (recommended)

Apply in settings.gradle.kts. The settings plugin loads in a classloader scope that is stable across configuration cache entries, preventing cache misses on subsequent runs.

// settings.gradle.kts
plugins {
    id("io.github.shivathapaa.aalekh") version "0.4.0"
}

The aalekh { } configuration block goes in the root build.gradle.kts and stays exactly as-is regardless of which plugin variant you use.

Project plugin (deprecated)

⚠ Deprecated as of v0.2.0. The project plugin will be removed in a future release. Please migrate to the settings plugin above.

The project plugin is applied via build.gradle.kts and produces a deprecation warning at build time. To migrate: move the plugin declaration to settings.gradle.kts and remove it from build.gradle.kts. The aalekh { } block stays in place.

// build.gradle.kts (root project only) - deprecated, migrate to settings plugin
plugins {
    id("io.github.shivathapaa.aalekh.project") version "0.4.0"
}

Why deprecated? The project plugin is loaded in the root-project(export) classloader scope, which is not preserved across configuration cache entries. This causes a CC miss on every second run. The settings plugin is loaded in the settings scope, which is stable.

Gradle Tasks

Aalekh registers three tasks on the root project, all in the aalekh task group.

Task	Description
./gradlew aalekhExtract	Extracts the module dependency graph and writes it as JSON to build/tmp/aalekh/graph.json
./gradlew aalekhReport	Generates the interactive HTML report at build/reports/aalekh/index.html
./gradlew aalekhCheck	Evaluates all architecture rules; fails the build on ERROR-severity violations

aalekhReport and aalekhCheck both depend on aalekhExtract implicitly - you do not need to run it manually.

aalekhCheck is automatically wired into the standard check lifecycle task (when the base plugin is applied, which is the default), so it runs as part of ./gradlew check without any extra configuration.

To wire it into CI explicitly:

// build.gradle.kts (root project)
tasks.named("check") {
    dependsOn("aalekhCheck")
}

aalekhReport

./gradlew aalekhReport

Generates build/reports/aalekh/index.html - a fully self-contained HTML file with no server, no CDN, and no internet connection required at render time. The report opens automatically in your default browser after the task completes. Disable auto-open with openBrowserAfterReport.set(false) for CI environments.

When exportMetrics is enabled, also writes build/reports/aalekh/aalekh-metrics.csv.

Every run appends a snapshot to build/aalekh/trend.json (rolling window of 30 entries) to power the KPI trend sparklines.

aalekhCheck

./gradlew aalekhCheck

Evaluates all registered architecture rules against the extracted dependency graph. On completion it writes three output files:

• build/reports/aalekh/aalekh-results.xml - JUnit XML consumed natively by all CI systems
• build/reports/aalekh/aalekh-results.json - full machine-readable report: graph, summary, violations, version, and timestamp
• build/reports/aalekh/aalekh-results.sarif - SARIF 2.1 for GitHub code scanning PR annotations

If any ERROR-severity violation is found, the task fails with a summary message and exit code 1:

Aalekh: 2 violation(s) found.
Run ./gradlew aalekhReport to see the full interactive report.

WARNING-severity violations are printed to stdout but do not fail the build. INFO-severity violations are silently collected and visible in the HTML report and JSON only.

Violation output is grouped by rule ID and shows the exact dependency to remove:

Aalekh [layer-dependency] ERROR - 1 violation(s):
  ✗ :feature:login:data (layer 'data') depends on :feature:login:ui (layer 'presentation').
    Edit feature/login/data/build.gradle.kts and remove:
    implementation(project(":feature:login:ui"))

aalekhExtract

./gradlew aalekhExtract

Extracts and serializes the full module dependency graph to build/tmp/aalekh/graph.json. The output is @CacheableTask - Gradle will skip it when inputs (project structure, dependency declarations, filter flags) have not changed.

You rarely need to run this directly; both aalekhReport and aalekhCheck depend on it.

The Report

./gradlew aalekhReport produces build/reports/aalekh/index.html. Open it in any browser - no server required, no internet connection needed.

Seven tabs

⬡ Architecture - Layer swimlane view. Modules are grouped by their declared layers { } configuration and rendered as swim lanes, making dependency direction violations immediately obvious. Edge crossings that violate the declared layer order are highlighted. This is the default tab when the report opens.

⊹ Explore - Interactive force-directed graph powered by D3.js. Drag to reposition nodes, scroll to zoom, click any node to open the Module Inspector in the sidebar. Nodes are coloured by module type; cycle nodes pulse with a red ring; god modules glow orange. Filter edges by type: Impl, API, Test, CompileOnly, KMP source sets, Main Cycle, Test Cycle. Hovering a node animates traffic along its edges to make dependency direction obvious at a glance.

⊞ Explorer - Hierarchical tree view mirroring your Gradle project structure. Expand and collapse groups, jump directly to cycle nodes, and see per-module dependency tables split by main vs test scope.

⊟ Matrix - Adjacency matrix showing all inter-module dependencies at a glance. Sort by connectivity, topological order, A–Z, or module type. Hover a cell for details; click a row or column label to inspect the module. In topological order, any dependency appearing in the lower triangle is a potential layer violation.

◎ Metrics - KPI dashboard: fan-in, fan-out, instability index, critical build path, god module count, cycle counts (main and test-only separately). Each KPI card includes a trend sparkline from the last 30 aalekhReport runs. Includes a per-layer purity table (percentage of edges flowing in the correct declared direction) and a list of consolidation candidates - module pairs that share many dependents and may be worth merging. Per-module sortable table with inline bar charts.

⚑ Violations - Structured violation cards for every aalekhCheck rule failure. Each card shows the rule ID, severity badge, the exact dependency edge to remove, a plain-language explanation of why the rule exists, and a “View in Graph” button that navigates directly to the offending module. Violation messages include the build file path of the offending dependency declaration.

When no violations exist and no layer rules are configured, the panel analyses your module paths and suggests a ready-to-paste layers { } DSL block based on detected domain, data, and ui/presentation patterns.

⇄ Diff - Snapshot comparison. Drag-drop a previous graph.json file onto the panel to see exactly which modules and edges were added or removed since that snapshot. The file is read locally

• nothing is uploaded to any server. Useful for reviewing architectural impact during a pull request.

Header toolbar

The report header provides global tools available on every tab:

Control	Description
Architecture debt score	0–100 badge summarising technical debt across all evaluated rules
Module search	Search across all module paths; press / to focus
⊙ Heatmap	Toggle to colour all nodes from green (stable) to red (unstable) by instability index
⟶ Path finder	Find the shortest dependency path between any two modules; result is highlighted in the graph
⬇ JSON	Download the raw graph.json data
⬇ CSV	Download per-module metrics as CSV
⬇ SVG	Export the current view (Architecture, Explore, or Matrix) as an SVG file

URL permalink

The active tab and selected module are encoded in location.hash. Copy the browser URL to share a specific view - the recipient will land on exactly the same tab with the same module selected.

Module Inspector sidebar

Click any node in the graph or explorer to open the module inspector in the right sidebar. It shows:

• Module path and short name
• Module type badge (colour-coded)
• Fan-in, fan-out, and transitive dependency count
• Blast radius - number of modules that transitively depend on this one (impact scope of a breaking change)
• Instability index bar (green = stable, yellow = mixed, red = unstable)
• Team owner (if configured via teams { })
• KMP source sets (if applicable)
• Direct dependencies and dependents, each clickable to navigate to that module

Cycle detection

Aalekh distinguishes between two kinds of cycles:

• Main cycles (⚠ red) - circular dependencies in production code. These are genuine architectural errors that prevent independent builds and refactoring. aalekhCheck fails on these by default.
• Test cycles (♻ pink) - cycles that exist only through testImplementation or androidTestImplementation. These are common, usually acceptable, and do not cause a build failure.

Both kinds are visible in the Explore graph, the Explorer tree, and the Metrics panel. Main and test cycle counts are reported separately in the KPI dashboard.

Configuration

All configuration lives in the aalekh { } block in the root build.gradle.kts.

// build.gradle.kts (root project)
aalekh {
    // Output directory relative to build/. Default: "reports/aalekh"
    outputDir.set("reports/aalekh")

    // Open the report in the default browser after aalekhReport completes.
    // Set to false in CI environments.
    // Default: true
    openBrowserAfterReport.set(true)

    // Include testImplementation / androidTestImplementation / KMP test edges in the graph.
    // Default: true
    includeTestDependencies.set(true)

    // Include compileOnly edges in the graph.
    // Disabled by default because compileOnly deps are rarely architecturally significant.
    // Default: false
    includeCompileOnlyDependencies.set(false)

    // Write aalekh-metrics.csv alongside the HTML report on every aalekhReport run.
    // Default: false
    exportMetrics.set(false)

    layers { /* see Layer enforcement */ }
    featureIsolation { /* see Feature isolation */ }
    teams { /* see Team ownership */ }
    rules { /* see Architecture Rules */ }
}

Configuration option reference

Option	Type	Default	Description
outputDir	String	"reports/aalekh"	Output directory relative to build/
openBrowserAfterReport	Boolean	true	Auto-open the HTML report after aalekhReport runs
includeTestDependencies	Boolean	true	Include testImplementation, androidTestImplementation, etc. in the graph
includeCompileOnlyDependencies	Boolean	false	Include compileOnly edges in the graph
exportMetrics	Boolean	false	Write aalekh-metrics.csv alongside the HTML report

Architecture Rules

Built-in rules

Rule ID	Severity	Description
no-cyclic-dependencies	ERROR	The module dependency graph must be a DAG (no production cycles)
layer-dependency	ERROR	Modules must only depend on modules in their declared allowed layers
no-feature-to-feature	ERROR	Feature modules must not depend on each other
max-transitive-dependencies	WARNING	Modules must not exceed the configured transitive dependency limit

Violation severity levels

Severity	Effect
ERROR	Fails the build. Printed to stderr.
WARNING	Printed to stdout. Build continues.
INFO	Silently collected. Visible in the HTML report and JSON only.

Layer enforcement

Declare layers and enforce the direction of dependencies between them. Module patterns support * (one path segment) and ** (any number of segments).

aalekh {
    layers {
        layer("domain") {
            modules(":core:domain", ":feature:*:domain")
            // No canOnlyDependOn = no restriction; domain may depend on nothing
        }
        layer("data") {
            modules(":core:data", ":feature:*:data")
            canOnlyDependOn("domain")
        }
        layer("presentation") {
            modules(":feature:*:ui", ":app")
            canOnlyDependOn("domain", "data")
        }
    }
}

A layer without canOnlyDependOn(...) has no dependency restriction. Any layer that calls canOnlyDependOn(...) is restricted to only depend on the listed layers; a dependency on any module outside those layers is a layer-dependency violation.

When a violation is found, the message names the exact build file and dependency to remove:

Aalekh [layer-dependency] :feature:login:data (layer 'data') depends on
:feature:login:ui (layer 'presentation'). Layer 'data' may only depend on:
domain. Edit feature/login/data/build.gradle.kts and remove:
implementation(project(":feature:login:ui"))

Feature isolation

Prevent feature modules from depending on each other. Specific pairs can be explicitly allowed.

aalekh {
    featureIsolation {
        featurePattern = ":feature:**"
        allow(from = ":feature:shared", to = ":feature:*")
    }
}

featurePattern is a glob matching all feature modules. The rule is inactive when the pattern is not set. Explicit allow(from, to) pairs are exempt and do not produce violations.

Team ownership

Map team names to module path glob patterns. Team assignments appear as a colour overlay in the graph and are shown in the Module Inspector sidebar. Cross-team dependency edges are annotated separately so reviewers can quickly identify dependencies that cross ownership boundaries.

aalekh {
    teams {
        team("auth-team") { modules(":feature:login:**", ":core:auth") }
        team("data-team") { modules(":data:**") }
        team("platform") { modules(":core:**") }
    }
}

Module path patterns support * (one path segment) and ** (any number of segments). A module belongs to the first team whose pattern matches - teams are evaluated in declaration order.

Gradual adoption

Teams migrating an existing codebase can adopt rules gradually - start with warnings, fix violations, then promote to errors when the codebase is clean:

aalekh {
    rules {
        rule("layer-dependency") {
            severity = Severity.WARNING   // see violations without blocking CI
            suppressFor(":legacy:**")     // exempt a known legacy subtree entirely
        }
    }
}

suppressFor accepts a glob pattern. Any module path matching the pattern is excluded from that rule’s evaluation. Multiple suppressFor calls on the same rule accumulate.

Transitive dependency limit

Fail or warn when a module pulls in too many hidden transitive dependencies:

aalekh {
    rules {
        noTransitiveDependenciesExceeding(30)
    }
}

The default severity is WARNING. Override with:

aalekh {
    rules {
        noTransitiveDependenciesExceeding(30)
        rule("max-transitive-dependencies") { severity = Severity.ERROR }
    }
}

Cycle regression prevention

Once a project is cycle-free, lock that state in so new cycles can never be introduced silently:

aalekh {
    rules {
        rule("no-cyclic-dependencies") {
            preventRegression = true
        }
    }
}

When enabled, aalekhCheck reads the main-code cycle count from the previous run’s aalekh-results.json. If the count increased, the build fails immediately - even if cycles already existed before. No baseline file to commit, no manual setup. The previous run’s output is the baseline.

SARIF output for GitHub PR annotations

aalekhCheck writes aalekh-results.sarif on every run. Upload it in your GitHub Actions workflow and violations appear as inline annotations directly on the pull request diff:

- name: Run architecture check
  run: ./gradlew aalekhCheck

- name: Upload SARIF
  uses: github/codeql-action/upload-sarif@v3
  if: always()
  with:
    sarif_file: build/reports/aalekh/aalekh-results.sarif

No token, no custom reporter, no extra setup.

Custom rules

Implement ArchRule from aalekh-analysis to create project-specific rules:

// Imports: com.aalekh.aalekh.analysis.rules.ArchRule, com.aalekh.aalekh.model.*

class NoAndroidInDomainRule : ArchRule {
    override val id = "no-android-in-domain"
    override val description = "Domain modules must not depend on Android libraries"
    override val defaultSeverity = Severity.ERROR
    override val plainLanguageExplanation =
        "The domain layer must stay platform-agnostic so it can be shared via KMP."

    override fun evaluate(graph: ModuleDependencyGraph): List<Violation> =
        graph.edges
            .filter { it.from.contains(":domain") }
            .filter { graph.moduleByPath(it.to)?.type == ModuleType.ANDROID_LIBRARY }
            .map { edge ->
                Violation(
                    ruleId = id,
                    severity = defaultSeverity,
                    message = "${edge.from} depends on Android module ${edge.to}. " +
                            "Move Android-specific code to the data or presentation layer.",
                    source = "${edge.from} → ${edge.to}",
                    moduleHint = edge.from,
                    plainLanguageExplanation = plainLanguageExplanation,
                )
            }
}

Register custom rules by passing them to the RuleEngine or by wiring them into the analysis pipeline in a custom Gradle task that calls RuleEngine.evaluate().

Metrics & Output

Graph metrics

Metric	Description
Fan-out	Number of modules this module directly depends on (production only)
Fan-in	Number of modules that directly depend on this one (production only)
Instability	fanOut / (fanIn + fanOut). Range 0.0 (stable, many dependents) to 1.0 (unstable, many dependencies)
Transitive deps	Total number of modules reachable by following production dependencies from this module
Blast radius	Total number of modules that transitively depend on this module - impact scope of a breaking change
Critical path	Longest dependency chain in the graph - the primary constraint on build parallelism
God modules	Modules with both high fan-in AND high fan-out - architectural hotspots that are difficult to change safely
Isolated modules	Modules with zero fan-in and zero fan-out - candidates for removal
Layer purity	Per-layer percentage of dependency edges flowing in the correct declared direction
Health score	0–100 composite score. Weighted from instability (30%), god module (25%), cycle participation (25%), transitive dep count (20%). Shown in the metrics table and module inspector sidebar.

Output files reference

File	Task	Description
build/tmp/aalekh/graph.json	aalekhExtract	Serialized module dependency graph. Input to all other tasks. Cleaned by ./gradlew clean.
build/reports/aalekh/index.html	aalekhReport	Self-contained interactive HTML report.
build/reports/aalekh/aalekh-metrics.csv	aalekhReport	Per-module metrics CSV. Written only when exportMetrics = true.
build/aalekh/trend.json	aalekhReport	Rolling 30-entry build trend history. Read on next run to power sparklines. Not cleaned by clean.
build/reports/aalekh/aalekh-results.xml	aalekhCheck	JUnit XML for CI test reporters.
build/reports/aalekh/aalekh-results.json	aalekhCheck	Full machine-readable report: graph summary, all violations, version, timestamp. Read by regression detection on the next run.
build/reports/aalekh/aalekh-results.sarif	aalekhCheck	SARIF 2.1 for GitHub code scanning PR annotations.

Metrics CSV export

Set exportMetrics.set(true) to write aalekh-metrics.csv alongside the HTML report on every aalekhReport run. The CSV contains one timestamped row per module with: fan-in, fan-out, instability, transitive dep count, health score, and boolean flags for god module, critical path, and cycle participation. Import into Datadog, Grafana, or a spreadsheet for external trending.

Trend history

Every aalekhReport run appends a metrics snapshot to build/aalekh/trend.json (rolling window of 30 entries). The snapshot records: timestamp, total module count, total edge count, cycle count, god module count, critical path length, and average instability. The data is embedded in the report and used to render the sparklines in each KPI card on the Metrics tab.

Failure to read or write the trend file is always non-fatal and never breaks the build.

Captured Configurations

Aalekh captures inter-module project dependencies from the following Gradle configurations:

Production (always captured):

Configuration	Notes
implementation	Standard implementation dependency
api	Leaks to consumers of the declaring module
compileOnly	Captured when includeCompileOnlyDependencies = true
runtimeOnly	Runtime-only dependency

Test (captured when includeTestDependencies = true):

Configuration	Notes
testImplementation	JVM/Android unit test dependency
testApi	Test API dependency
testCompileOnly	Test compile-only
testRuntimeOnly	Test runtime-only
androidTestImplementation	Android instrumented test dependency
androidTestRuntimeOnly	Android instrumented test runtime-only
debugImplementation	Android debug build type
releaseImplementation	Android release build type

KMP source sets (captured automatically):

Any configuration whose name ends with Implementation, Api, CompileOnly, or RuntimeOnly and is not a standard configuration above is treated as a KMP source set configuration. Examples: commonMainImplementation, androidMainApi, iosMainCompileOnly, jvmTestImplementation.

The source set name is extracted from the configuration name (e.g. commonMainImplementation → source set commonMain) and stored on the edge for display in the graph.

Module Types

Aalekh infers the module type from applied plugin class names. Detection runs in priority order - first match wins.

Module Type	Detected when plugin is applied	Graph color
KMP	org.jetbrains.kotlin.multiplatform	Purple
KMP_ANDROID_LIBRARY	com.android.kotlin.multiplatform.library	Teal
ANDROID_APP	com.android.application	Blue
ANDROID_LIBRARY	com.android.library, com.android.dynamic-feature	Green
JVM_LIBRARY	org.jetbrains.kotlin.jvm, java-library, java	Amber
UNKNOWN	(fallback - no known plugin applied)	Gray

Configuration Cache

Aalekh is fully compatible with Gradle’s configuration cache, which is enabled by default in Gradle 9.x.

All task inputs are @Input primitives, maps, or @InputFile paths captured via provider lambdas at configuration time. No live Project, Configuration, or Dependency objects are stored in any task action. The aalekhExtract task is @CacheableTask, so it is skipped UP-TO-DATE when nothing has changed.

The intermediate build/tmp/aalekh/graph.json is the serialization boundary between the configuration phase (graph extraction) and the execution phase (report and check tasks).

CI Setup

GitHub Actions

- name: Run architecture check
  run: ./gradlew aalekhCheck

- name: Upload SARIF
  uses: github/codeql-action/upload-sarif@v3
  if: always()
  with:
    sarif_file: build/reports/aalekh/aalekh-results.sarif

- name: Upload Aalekh report
  uses: actions/upload-artifact@v4
  if: always()
  with:
    name: aalekh-report
    path: build/reports/aalekh/

- name: Publish test results
  uses: mikepenz/action-junit-report@v4
  if: always()
  with:
    report_paths: build/reports/aalekh/aalekh-results.xml

Recommended CI configuration

// build.gradle.kts (root project)
aalekh {
    openBrowserAfterReport.set(false)   // never open a browser in CI
    includeTestDependencies.set(true)   // keep test edges for full picture
    exportMetrics.set(true)             // write CSV for external dashboards
}

Compatibility

Aalekh	Gradle	Kotlin	AGP	JDK
0.4.x	9.0+	2.3+	9.1+	11, 17, 21
0.3.x	9.0+	2.3+	9.1+	11, 17, 21
0.2.x	9.0+	2.3+	9.1+	11, 17, 21
0.1.x	9.0+	2.3+	9.1+	11, 17, 21

Aalekh requires the settings plugin (settings.gradle.kts) on Gradle 9.x because configuration cache is enabled by default and the project plugin cannot safely capture inter-project state across CC entries. Kotlin DSL (*.kts) is required - Groovy DSL is not supported.

Contributing

Contributions are welcome. Please read CONTRIBUTING.md before opening a PR.

Building locally

git clone https://github.com/shivathapaa/aalekh.git
cd aalekh
./gradlew build

Running tests

# Unit tests across all modules
./gradlew checkAll

# Functional tests only (GradleRunner-based, slower)
./gradlew :aalekh-gradle:functionalTest

# Single test class
./gradlew :aalekh-model:test --tests "com.aalekh.aalekh.model.ModuleDependencyGraphTest"

Publishing locally for consumer testing

./gradlew publishToMavenLocal

Then add mavenLocal() to your consumer project’s settings.gradle.kts repository list.

License

Copyright 2026 Shiva Thapa

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    https://www.apache.org/licenses/LICENSE-2.0

Made with ♥ for the Kotlin community
Report a bug · Request a feature

This site is open source. Improve this page.
